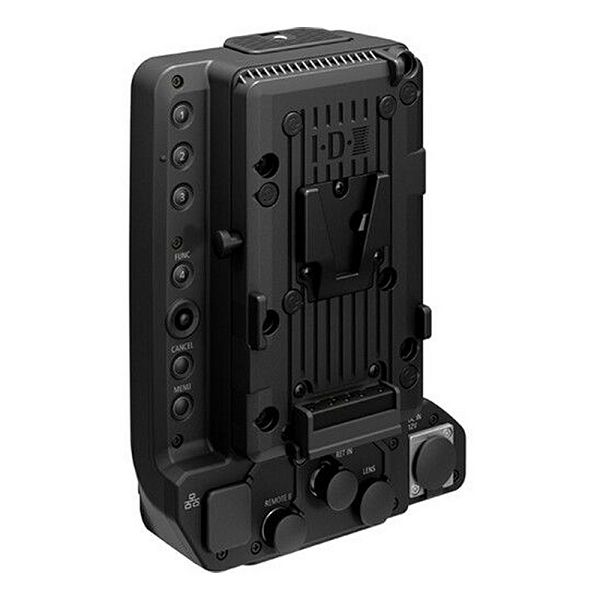

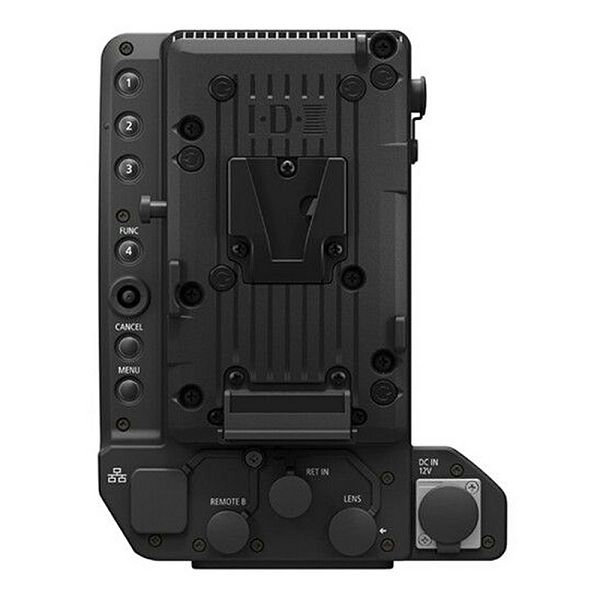

Canon EU-V3 Expansion Unit
The Canon EU-V3 Expansion Unit mounts easily on your C300 Mark III or C500 Mark II camera, providing multiple interfaces for easier integration with a studio or live production setup. The EU-V3 expansion unit is powered via the 4-pin XLR DC input or using a battery and the V-mount plate. This unit provides a D-Tap output, return video, tally, Ethernet/XC protocol, RS-422 Remote B, and RJ45 Ethernet interfaces plus a 4-pin Hirose 12V output and 12-pin lens port.
- For C300 Mark III, C500 Mark II
- V-Mount Plate, 4-Pin XLR DC Input
- SDI Return Video, D-Tap Output
- Tally Signal, RJ-45 Ethernet Jack
- Input via Ethernet Interface/XC Protocol
- RS-422 Control via "Remote B" Port
- 12V Output via 4-Pin Hirose Interface
- 12-Pin Interface for Lens Power
Compatibility
- Canon C300 Mark III
- Canon C500 Mark II
In the Box
- Canon EU-V3 Expansion Unit
- Terminal Cap
- Hex Socket Head Bolt (M4)
Key features
- Compatibility:
Canon C300 Mark III
Canon C500 Mark II - Battery Plate: V-Mount
- Connector 1
1x 4-Pin XLR Power - Connector 2
1x RS-422 Control
1x RJ45 Ethernet
1x 4-Pin Hirose (12V)
1x 12-Pin Lens Interface
1x D-Tap Output - Dimensions: 7.4 x 5.6 x 4" / 18.8 x 14.2 x 10.2 cm
- Weight: 1.5 lb / 680 g
- Package Weight: 2.35 lb
- Box Dimensions (LxWxH): 11.1 x 8 x 7.3"
