DJI Air 3 (DJI RC-N2)
Double Up
DJI Air 3 is a compact foldable drone with two powerful cameras— a wide-angle and a 3x medium telephoto. Enjoy optimized flights with a 46-minute max flight time, omnidirectional obstacle sensing, and O4 video transmission. And capture breathtaking details of any scene with dual-camera 48MP photos and 4K HDR video. With Air 3, film your subjects with unlimited creativity and tell a bold visual story.
Dual-Primary-Camera System
Air 3 boasts the first dual-primary camera system of the Air series, embedding a 1/1.3-inch-CMOS wide-angle camera and a 1/1.3-inch-CMOS 3x medium tele camera in a sleek and compact body. The two cameras have the same sensor size but different focal lengths, delivering consistent image quality and more dynamic imaging possibilities.
Complementary Camera Performance
With the wide-angle camera, sweeping landscapes can be more fully captured.
And the 3x medium tele camera achieves lossless 3x optical zoom for spatial compression that provides a unique perspective of any subject.
Iconic from Every Angle
Use the expansive FOV of the wide-angle camera to capture more of any landscape. Switch to the 3x medium tele camera to frame any subject as a bold focal point.
Dual-Camera 48MP Photos
Both cameras are capable of delivering 48MP photos filled with true-tlife details that look great and allow seamless cropping in post for those who need it.
Dual-Camera 4K/60fps HDR Videos
Air 3’s two 1/1.3-inch CMOS sensors support dual native ISO for direct output of 4K/60fps HDR video without cropping. This means footage from either camera can be packed with rich coloring and natural lighting transitions for breathtaking and highly-accurate results.
Both cameras also support 10-bit D-Log M and 10-bit HLG color modes. 10-bit D-Log M mode helps retain more highlight and shadow details for increased flexibility when editing. While 10-bit HLG mode can present a higher dynamic range, achieving excellent imaging results without color grading.
Fly Confident, Fly Safe
Extended Flight, Innovative Charging
Air 3 offers up to 46 minutes of flight time, an increase of 48% compared to the previous generation. This provides plenty of time to explore, adjust compositions, and get the shots you want, all during a single flight.
The new battery charging hub supports an innovative power transfer function. Simply press and hold the function button to transfer the remaining power from multiple batteries to the battery with the highest remaining power, giving you a more fully charged battery in situations where charging options are limited.
Omnidirectional Obstacle Sensing
An omnidirectional sensing system enables comprehensive environmental awareness, allowing Air 3 to detect obstacles in all directions.When obstacles are detected, Air 3 can use APAS 5.0 to perform smoother avoidance movements for a safer overall flight experience. Even complete beginners can now fly with confidence and execute creative ideas with enhanced safety.
O4 Video Transmission
The next-gen O4 video transmission system empowers Air 3 with dramatically enhanced transmission performance. It provides a max range of 10 km with increased stability, and a 1080p/60fps max-quality live feed to ensure ultra-smooth viewing and operating.
Advanced RTH
During Smart RTH, Air 3 will automatically plan an optimized flight route for Advanced RTH, while maintaining omnidirectional obstacle sensing to return to its home point quickly and safely.
Intelligent Features to Fly Inspired
Effortlessly Cutting-Edge
FocusTrack
FocusTrack keeps you or your subject easily in the center of the frame. The 3x medium tele camera unlocks a unique sense of spatial compression when highlighting subjects. This updated tracking performance combined with omnidirectional obstacle sensing lets you get intelligent, well-planned shots whenever and wherever you need them.
QuickShots
QuickShots empower Air 3 with creative camera movement options like Rocket, Dronie, Circle, Helix, Boomerang, and Asteroid.
2.7K Vertical Shooting
Air 3 supports 2.7K vertical shooting with both cameras, giving vertical footage a superbly dynamic look when capturing landscapes or subjects. The 2.7K vertical shot output directly from the 4:3 CMOS delivers clips that are optimized for smartphone viewing and ready to share on social media without any cropping needed in post.
MasterShots
MasterShots allows Air 3 to automatically perform diverse camera movements, shooting multiple clips and editing them with music, cuts, and effects for fast and simplified cinematic footage.
LightCut App
Connect to Air 3 wirelessly via the LightCut app on your smartphone for expanded creative options such as One-Tap Edit. There is no need to download all the footage during the process, which helps save storage space on your mobile device.
Hyper-Advanced Shooting
Waypoint
For the first time ever, the Waypoint feature is now available on the Air series. Plan flight routes and shooting actions for Air 3 in advance to achieve difficult camera movements and stunning one-takes. You can also save flight routes to repeat the same movement with precision at a later time or date, opening the door to long-duration timelapse shots that capture transitions like day to night or season to season.

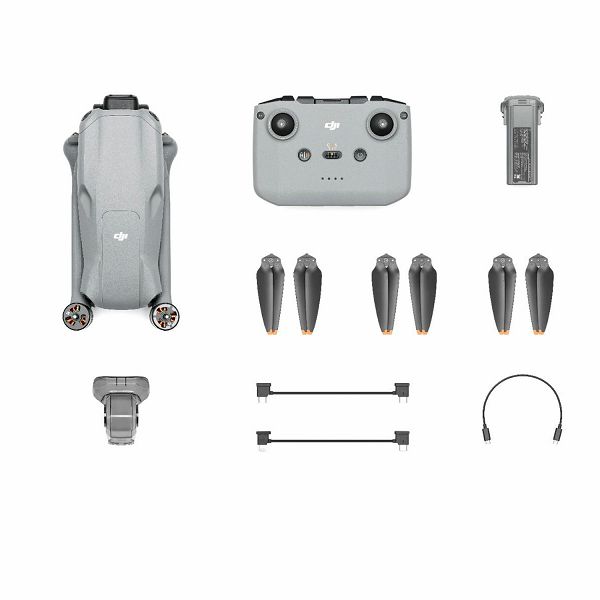

In The Box
- DJI Air 3 (DJI RC-N2)
Specifications
Aircraft
- Takeoff Weight 720 g
- Dimensions
Folded (without propellers): 207×100.5×91.1 mm (L×W×H)
Unfolded (without propellers): 258.8×326×105.8 mm (L×W×H) - Max Ascent Speed 10 m/s
- Max Descent Speed 10 m/s
- Max Horizontal Speed (at sea level, no wind)
21 m/s
19 m/s in EU regions. - Max Takeoff Altitude 6000 m
- Max Flight Time
46 minutes
Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight. - Max Hovering Time
42 minutes
Measured by DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight. - Max Flight Distance 32 km
- Max Wind Speed Resistance 12 m/s
- Max Pitch Angle 35°
- Operating Temperature -10° to 40° C (14° to 104° F)
- Global Navigation Satellite System GPS + Galileo + BeiDou
- Hovering Accuracy Range
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with high-precision positioning system) - Internal Storage 8 GB
Camera
- Image Sensor
Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP - Lens
Wide-Angle Camera
FOV: 82°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to ?
Medium Tele Camera
FOV: 35°
Format Equivalent: 70 mm
Aperture: f/2.8
Focus: 3 m to ? - ISO Range
Video
Normal and Slow Motion:
100-6400 (Normal)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
100-12800 (Normal)
100-6400 (12 MP)
100-3200 (48 MP) - Shutter Speed
Wide-Angle Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
Medium Tele Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s - Max Image Size
Wide-Angle Camera: 8064×6048
Medium Tele Camera: 8064×6048 - Still Photography Modes
Wide-Angle Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s
Medium Tele Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s - Photo Format JPEG/DNG (RAW)
- Video Resolution
Wide-Angle Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps
Medium Tele Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps - Video Format MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
- Max Video Bitrate H.264/H.265: 150 Mbps
- Supported File System exFAT
- Color Mode and Sampling Method
Wide-Angle Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)
Medium Tele Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265) - Digital Zoom
Wide-Angle Camera: 1-3x
Medium Tele Camera: 3-9x - Gimbal Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)
- Mechanical Range
Tilt: -135° to 70°
Roll: -50° to 50°
Pan: -27° to 27° - Controllable Range
Tilt: -90° to 60°
Pan: -5° to 5° - Max Control Speed (tilt) 100°/s
- Angular Vibration Range ±0.0037°
Sensing
- Sensing Type
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft - Forward
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ? 12 m/s
FOV: Horizontal 90°, Vertical 72° - Backward
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ? 12 m/s
FOV: Horizontal 90°, Vertical 72° - Lateral
Measurement Range: 0.5-30 m
Effective Sensing Speed: Flight Speed ? 12 m/s
FOV: Horizontal 90°, Vertical 72° - Upward
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ? 6 m/s
FOV: Front and Back 72°, Left and Right 90° - Downward
Measurement Range: 0.3-14 m
Effective Sensing Speed: Flight Speed ? 6 m/s
FOV: Front and Back 106°, Left and Right 90° - Operating Environment
Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15) - 3D Infrared Sensor
Measurement Range: 0.1-8 m (reflectivity > 10%)
FOV: Front and Back 60°, Left and Right 60°
Video Transmission
- Video Transmission System O4
- Live View Quality
Remote Controller:
1080p/30fps, 1080p/60fps - Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations. - Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE) - Max Transmission Distance (unobstructed, free of interference)
FCC: 10 km
CE: 10 km
SRRC: 10 km
MIC: 10 km - Max Transmission Distance (unobstructed, with interference)
Strong Interference: urban landscape, approx. 1.5-4 km
Medium Interference: suburban landscape, approx. 4-10 km - Max Transmission Distance (obstructed, with interference)
Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km - Max Download Speed O4:
10 MB/s (with DJI RC-N2 Remote Controller)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s* - Lowest Latency
Aircraft + Remote Controller: approx. 120 ms
Depending on the actual environment and mobile device. - Antenna 6 antennas, 2T4R
Wi-Fi
- Protocol 802.11 a/b/g/n/ac
- Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz - Transmitter Power (EIRP)
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)
Bluetooth
- Protocol Bluetooth 5.2
- Operating Frequency 2.400-2.4835 GHz
- Transmitter Power (EIRP) < 10 dBm
Battery
- Capacity 4241 mAh
- Weight Approx. 267 g
- Nominal Voltage 14.76 V
- Max Charging Voltage 17 V
- Type Li-ion 4S
- Energy 62.6 Wh
- Charging Temperature 5° to 40° C (41° to 104° F)
- Charging Time
Approx. 80 minutes (with DJI 65W Portable Charger)
Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)
Charger
- Input
DJI 65W Portable Charger:
100-240 V (AC), 50-60 Hz, 2 A
DJI 100W USB-C Power Adapter:
100-240 V (AC), 50-60 Hz, 2.5 A - Output
DJI 65W Portable Charger:
USB-C
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A
5 V, 2 A
DJI 100W USB-C Power Adapter:
Max 100 W (total)
When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load. - Rated Power
DJI 65W Portable Charger: 65 W
DJI 100W USB-C Power Adapter: 100 W
Battery Charging Hub
- Input USB-C: 5-20 V, max 5 A
- Output (power accumulation) Battery Port: 12-17 V, 3.5 A
- Output (charging) Battery Port: 12-17 V, max 5 A
- Output (USB)
USB-C:
5 V, 3 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 4.1 A - Charging Type Three batteries charged in sequence.
- Compatibility DJI Air 3 Intelligent Flight Battery
Car Charger
- Input
Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC) - Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A - Rated Power 65 W
- Charging Temperature 5° to 40° C (41° to 104° F)
- Storage
Recommended microSD Cards
SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC
Lexar 1066x 64GB V30 U3 A2 microSDXC
Lexar 1066x 128GB V30 U3 A2 microSDXC
Lexar 1066x 256GB V30 U3 A2 microSDXC
Lexar 1066x 512GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC
Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC
Samsung EVO Plus 512GB V30 U3 A2 microSDXC
DJI RC-N2 Remote Controller
- Model RC151
- Max Operating Time
Without charging any mobile device: 6 hours
When charging a mobile device: 3.5 hours - Max Supported Mobile Device Size 180×86×10 mm (L×W×H)
- Operating Temperature -10° to 40° C (14° to 104° F)
- Charging Temperature 5° to 40° C (41° to 104° F)
- Charging Time 2.5 hours
- Charging Type It is recommended to use a 5V/2A charger.
- Battery Capacity 18.72 Wh (3.6 V, 2600 mAh × 2)
- Type 18650 Li-ion
- Dimensions 104.22×149.95×45.25 mm (L×W×H)
- Weight 375 g
- Supported Mobile Device Port Type
Lightning, USB-C, Micro-USB
Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately. - Video Transmission Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz - Video Transmission Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC)
