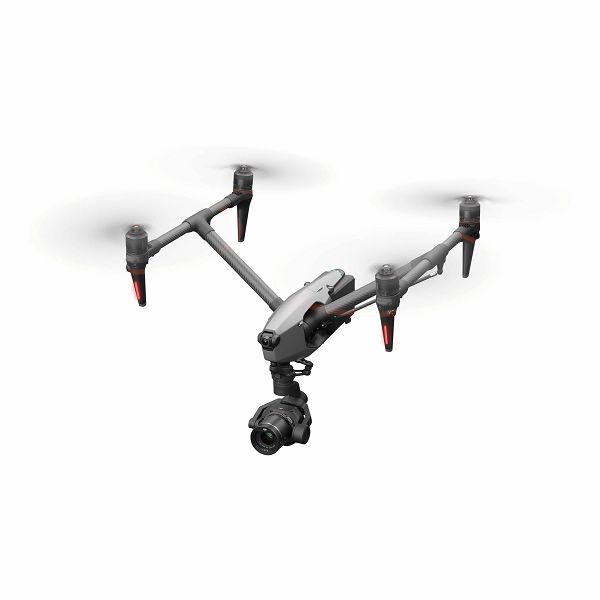

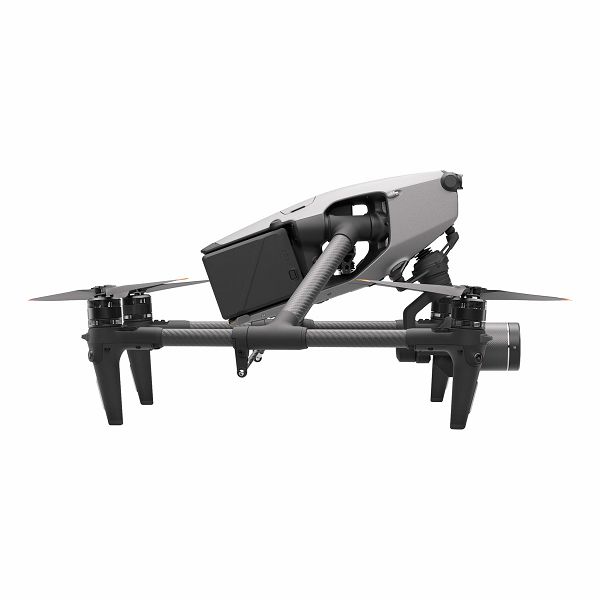

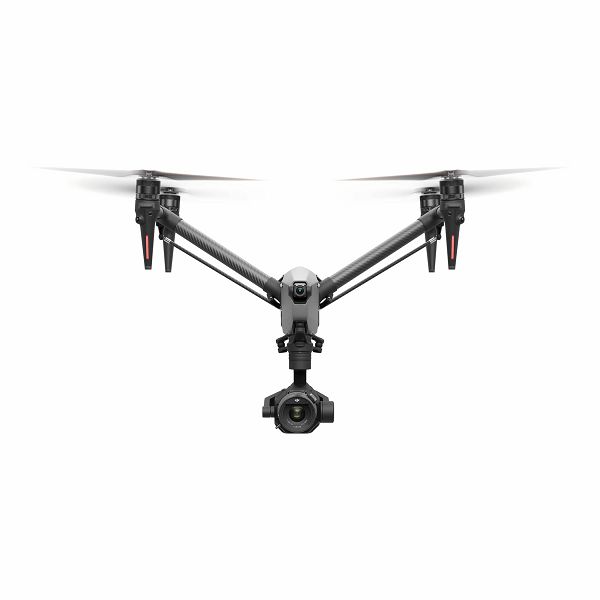

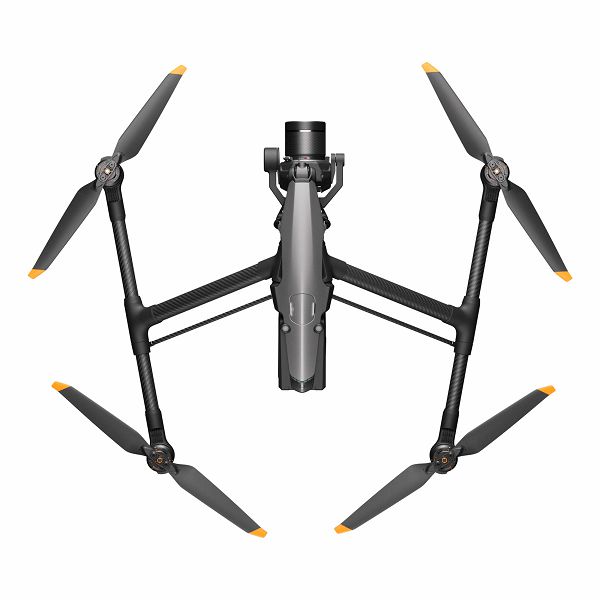

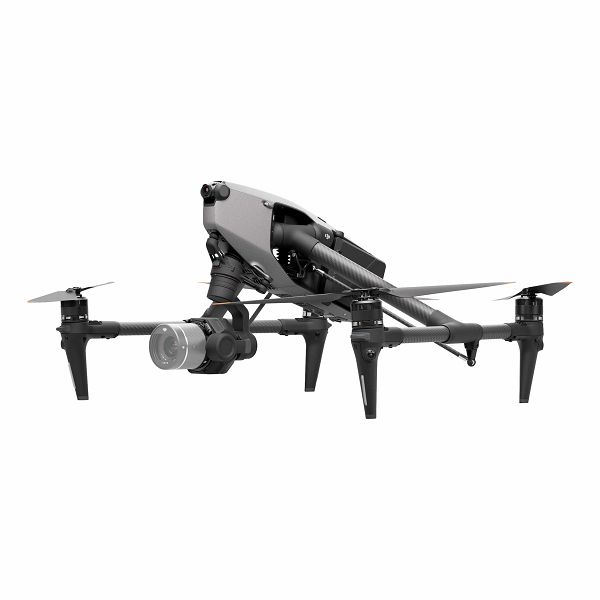

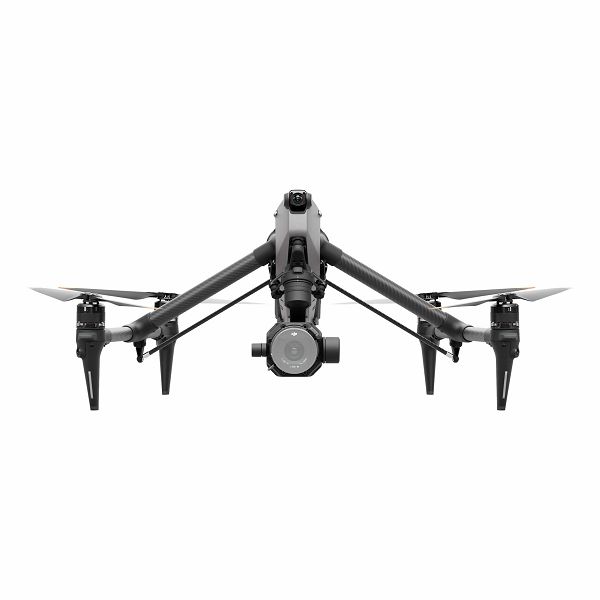

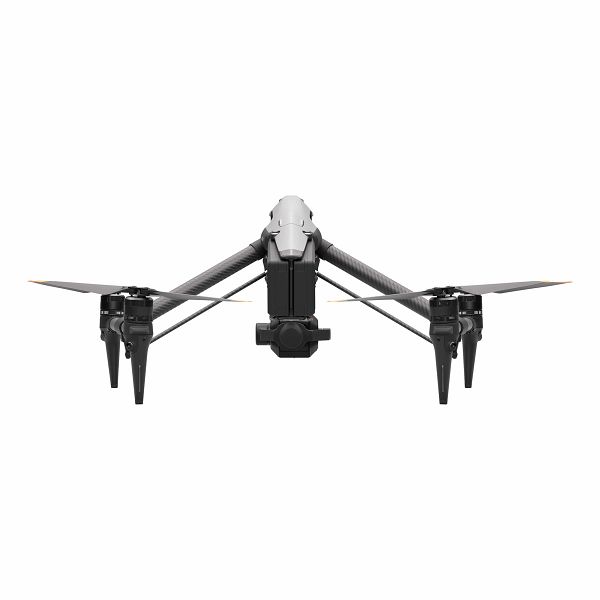

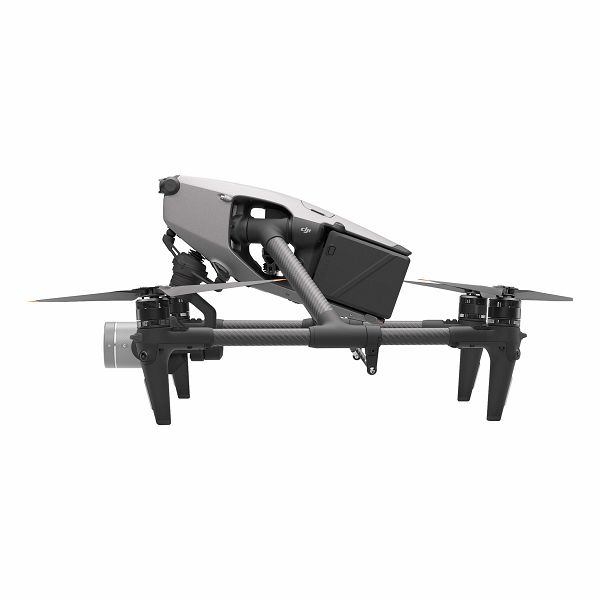

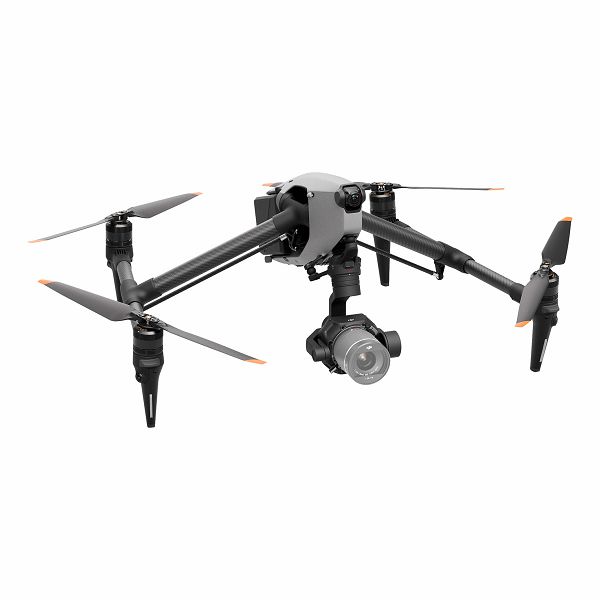

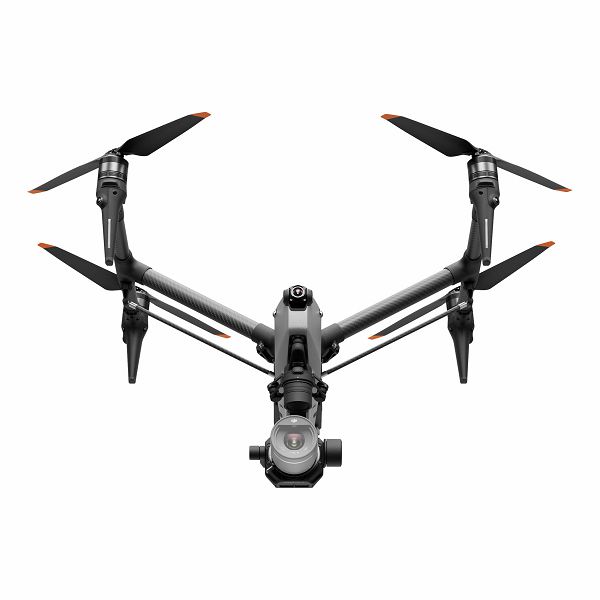

DJI Inspire 3 Drone
mproving upon many aspects of the Inspire 2, the DJI Inspire 3 Drone keeps up with the advancements and needs of film and television producers, allowing filmmakers to capture creative and stunning results. It begins with the X9-8K Air, an 8K, full-frame, 3-axis, gimbal camera custom-built for the Inspire 3. It joins a new 1/1.8" FPV camera with double the DFOV of the Inspire 2. Together, they help capture professional footage and complex shots thanks to a customizable obstacle avoidance system, built-in centimeter-level RTK accuracy, and tracking solutions that allow accurate and repeatable shots.
8K X9-8K Air Gimbal
The heart of the Inspire 3 is the custom-built X9-8K Air gimbal that uses CineCore 3.0, DJI's latest image processing system to internally record up to 8K25 CinemaDNG video or 8K75 Apple ProRes RAW video (both requiring RAW License Key, sold separately). The footage retains a lifelike texture that's close to what the human eye can see, allowing enough space to add visual effects and color grading. Complex lighting sources are supported with 14+ stops of dynamic range and the use of the DJI cinema Color System authenticity in recording everything from urban landscapes to a variety of skin tones. Additional features include:
- 8K75 Apple ProRes RAW video
- S&Q Mode: Up to full-frame 4K120 ProRes RAW without cropping
- Dual Native ISO at full-frame 30 fps and below
- EI 800/4000 at 24 fps for film production
- EI 320/1600 above 30 fps for commercial and TV production
- 14+ stops of dynamic range for capturing rich highlights and shadow in complex lighting scenarios and allowing for more possibilities during editing
- DJI Cinema Color System (DCCS): An improved DCCS retains authentic colors across natural and urban settings and skin tones in various lighting, and it helps make color matching the X9-8K Air with ground-based cameras easier to achieve
Please note: While this drone is capable of shooting in CinemaDNG and Apple ProRes, a RAW License Key is required and sold separately by DJI.
FPV Camera
Doubling the DFOV of the Inspire 2 to 161°, the new 1/1.8" FPV camera lets pilots take in an ultra-wide first-person view of what the drone sees in flight. The camera supports the transmission of live feeds at 1080p60 and provides a large 3 µm pixel size. The larger pixels offer better light-sensing for improved night vision and safer low-light FPV flying.
Centimeter-Level RTK Positioning
With RTK antennas built into the Inspire 3's airframe, pilots can take advantage of centimeter-level accuracy normally utilized in architecture and surveying to use DJI Waypoint Pro to confidently fly complex routes over and over. The RTK antennas work in conjunction with three types of GNSS (GPS, BeiDou, and Galileo) and dual-frequency positioning. Pilots can choose to activate an RTK Network, using the internet connection of the RC Plus to connect to an NTRIP server or set up an optional D-RTK 2 Mobile Station without needing to install additional modules.
Waypoint Pro
This feature encompasses a wide range of settings, including Repeatable Routes and 3D Dolly, allowing filmmakers to take advantage of RTK positioning to more easily replicate and capture highly-complex scenes.
- Repeatable Routes: Have the Inspire 2 automatically fly the same route over and over while keeping all preset parameters, such as altitude, speed, gimbal angle, and camera settings. This helps perform difficult one-take shots and fly identical routes at different times of the day for transition shots.
- 3D Dolly: Simulate a crane, cable cam, or dolly shot with the added flexibility that aerial cinematography can provide. You can plan the dolly route and then move the Inspire 3 drone back and forth along it while adjusting speed, gimbal angle, and other parameters as needed.
Spotlight Pro
With improved machine-learning algorithms, the Inspire 3 can use Spotlight Pro to automate subject recognition and locking for both people and vehicles with increased accuracy. Choose from Follow or Free modes to capture the scene.
- Follow Mode: In this mode, the drone and gimbal lock onto a subject and orient toward it in the same direction, allowing for easier circling shots.
- Free Mode: Taking advantage of the gimbal's 360° pan ability, the gimbal can stay locked onto a subject while the pilot uses the FPV camera to check the surroundings and control the flight route.
Omnidirectional Obstacle Avoidance
To help keep the Inspire 3 and bystanders safe during filming, DJI incorporates nine visual sensors to detect obstacles in all directions. This includes 360° horizontal, upward, and downward coverage, in addition to a depth-sensing downward ToF sensor. A fisheye camera is attached to each of the four landing arms. When they are raised, obstruction from the airframe can be avoided, and when lowered, you gain horizontal obstacle sensing.
A new feature offered by the Inspire 3 is the ability to customize obstacle avoidance. So, filmmakers can enable or disable horizontal, upward, or downward sensing independently. This allows pilots to fly closer to objects, performing complex and creative maneuvers without automated avoidance ruining the shot. You still get the ability to manually set a range, where the Inspire 3 will give you an audible alert sound if you get too close, and you'll always be able to see an object's distances on the controller's display.
O3 Pro
O3 Pro is a generational leap in distance, video latency, and stability compared to the Inspire 2. Using the DJI O3 Pro video transmission and control system, pilots of the Inspire 3 can enjoy a maximum control distance of 9.3 miles in single-control mode or up to 7.5 miles in dual-control mode. Both the 8K gimbal and FPV can provide live feeds of 1080p90 at a low 90 ms latency, and for the first time, filmmakers can have live feeds at 4K30 or 1080p60 at up to 3.1 miles.
DJI RC Plus
In addition to classic piloting controls with integrated buttons and dials, the RC Plus's 7" display works with the DJI Pilot 2 app to add a live video feed and telemetry, such as camera exposure, video specs, focal length, and gimbal angle. The display provides 1200 nits of brightness, making it suitable for outdoor viewing.
To share the live video feed with others on set, you can use the built-in HDMI output to connect the controller to an optional monitor. It can run for up to 3.3 hours per battery charge and supports hot swapping to extend battery life. If you do fly for long periods, the included strap and waist support help to make piloting more comfortable.
Dual Control with Independent Links
Unlike Inspire 2, primary and secondary control links are not bound. This means that two remotes can operate independently, giving each operator live feeds and the ability to be at different physical positions. Also, if the pilot loses the signal, the gimbal operator can take over to land the drone safely. Please note that a second remote is optional and not included.
Expandable DJI PRO Ecosystem
Even with the DJI Inspire 3's impressive cinematic capabilities, pilots and gimbal operators can expand the drone's performance even more with optional DL Mount lenses and DJI PRO Ecosystem accessories and features.
- DJI High-Bright Remote Monitor can be used as a second controller to receive live feeds or control the gimbal and focus
- DJI Three-Channel Follow Focus uses the O3 Pro system with the High-Bright Remote Monitor to transmit control signals to the Inspire 3. This allows the focus puller to accurately achieve remote focus and stepless aperture adjustments
- DJI Master Wheels works with a High-Bright Remote Monitor to allow for gimbal control
- DJI Transmission supports unlimited remote monitors with the connection of the RC Plus to a DJI Video Transmitter with Broadcast mode
TB51 Dual-Battery System
Six TB51 batteries are included with a charging hub to maximize flight time. Each pair of the small and lightweight TB51 batteries delivers 28 minutes of flight time and supports hot swapping to get fresh batteries into the Inspire 3, reducing downtime. The intelligent flight batteries also offer an automatic heating function to maintain flight performance under 64°F. Use the included folding charging hub to make sure all batteries are ready to go. It can accommodate up to eight batteries, charging two to 90% in just 35 minutes in Fast Mode, and all eight to 100% in just 160 minutes.
1TB PROSSD
Capture footage on the included 1TB PROSSD drive and easily offload it to a PC with just the included USB-C data cable. Preview your footage fast, thanks to a maximum read speed of 900 Mb/s.
Trolly Case
Get the Inspire 3 and accessories safely to the set with the included trolly case. An extendable handle, two side handles, and four 360° wheels make transportation easy. Two numbered locks are included to safely secure the case's contents. The case is designed to hold the following:
- Inspire 3
- X9-8K gimbal camera
- Two RC Plus remotes (one included)
- Four (optional) lenses
- 12 flight batteries (six included)
- Two battery charging hubs (one included)
- Three sets of propellers and more
Multicamera Timecode Sync
Through the 3.5mm port, you can sync timecodes between equipment in the air and on the ground. Helping filmmakers simplify the editing process.
Dual-Antenna Orientation
Front and rear built-in stacked ceramic antennas have an anti-magnetic-interference capability to improve flight accuracy and safety.
In the Box
- DJI Inspire 3 Drone
- RC Plus
- 6 x TB51 Intelligent Battery
- TB51 Intelligent Battery Charging Hub
- 7 x TB51 Intelligent Battery Charging Hub AC Cable
- TB51 Intelligent Battery Paired Batteries Sticker
- 3 x Pair of Foldable Quick Release Propellers
- 2 x Gimbal Rubber Damper
- PROSSD 1TB
- Trolly Case
- USB-C High-Speed Data Cable
- USB-C to USB-A Data Cable
- RC Plus Strap
- RC Plus Waist Support
- Zenmuse X9-8K Air Gimbal Camera
- Zenmuse X9-8K Air Gimbal Camera Case
- DL Mount Lens Cap
- X9 Gimbal Base Cap
- Lens Carrying Case (18/24/35/50 mm)
- Double-Headed Screwdriver
- Limited 2-Year Manufacturer Warranty (PROSSD 1TB)
- Limited 1-Year Manufacturer Warranty (Drone, Camera, Charging Hub & Case)
- Limited 1-Year Manufacturer Warranty (1 Year & Less Than 200 Charge Cycles)
- Limited 3-Month Manufacturer Warranty (Other Accessories, Excluding Propellers)
Key Features
- X9-8K Air Full-Frame 3-Axis Gimbal
- CinemaDNG/ProRES with Optional License
- CineCore 3.0 Image Processing
- Centimeter-Level RTK Positioning
- 1/1.8" FVP Camera with 161° DFOV
- Spotlight Pro Subject Tracking
- Omnidirectional Obstacle Avoidance
- Up to 9.3-Mile Control via O3 Pro
- Up to 58.4 mph Flight Speed
- RC Plus Remote with 7" 1200-nit Display
DJI Inspire 3 Drone With RC Plus ControllerSpecs
Key Specs
- Maximum Horizontal Speed: 58.4 mph / 94.0 km/h
- Maximum Flight Time: 28 Minutes
- Number of Cameras: 2
- Camera System:
Gimbal Camera
1/1.8"-Type CMOS Sensor with DL Lens Mount
FPV
1/1.8"-Type CMOS Sensor with Lens (161° FoV) - Maximum Video Resolution:
Gimbal Camera
Up to DCI 8K at 75 fps Raw / DCI 8K at 30 fps / DCI 4K at 120 fps
FPV
Up to 1080p at 60 fps Raw - Sensing System: Omnidirectional
- Control Method: Included Transmitter
- Maximum Operating Distance: 9.3 Miles / 15 km
- Mobile App Compatible:
Yes: Android & iOS
App Name: DJI Pilot 2 - Weight:
8.8 lb / 3995 g (Takeoff)
9.5 lb / 4310 g (Maximum for Takeoff)
Performance
- Maximum Horizontal Speed: 58.4 mph / 94.0 km/h
- Maximum Ascent Speed: 17.9 mph / 28.8 km/h
- Maximum Descent Speed: 22.4 mph / 36.0 km/h
- Maximum Wind Resistance: 31.3 mph / 50.4 km/h
- Maximum Take-Off Altitude: 2.4 Miles / 3.8 km
- Maximum Flight Time: 28 Minutes
- Maximum Hover Time: 25 Minutes
- Maximum Tilt Angle: 55°
- Hovering Accuracy:
RTK
Horizontal: ±0.3' / 0.1 m
Vertical: ±0.3' / 0.1 m
GNSS
Horizontal: ±1.6' / 0.5 m
Vertical: ±1.6' / 0.5 m
Vision Positioning
Horizontal: ±1.0' / 0.3 m
Vertical: ±0.3' / 0.1 m - Maximum Angular Velocity
200°/s (Pitch)
150°/s (Yaw)
200°/s (Roll)
Aircraft
- Rotor Configuration: Quadcopter
- Remote ID: Yes
- Built-In Video Light: No
- Aircraft I/O:
1x USB-C (Service)
1x 1/8 / 3.5 mm (Timecode) - Operating Conditions: -4 to 104°F / -20 to 40°C
Imaging
- Number of Cameras: 2
- Camera System:
Gimbal Camera
1/1.8"-Type CMOS Sensor with DL Lens Mount
FPV
1/1.8"-Type CMOS Sensor with Lens (161° FoV) - ISO Sensitivity Range
Gimbal Camera
Photo: 100 to 25,600
Video: 200 to 6400 - Shutter Speed
Gimbal Camera
Electronic Shutter: 1/8000 to 8 Seconds (Photo/Video) - Maximum Video Resolution:
Gimbal Camera
Up to DCI 8K at 75 fps Raw / DCI 8K at 30 fps / DCI 4K at 120 fps
FPV
Up to 1080p at 60 fps Raw - Still Image Support
Gimbal Camera
Up to 44 MP (DNG / JPEG) - Media/Memory Card Slot
In Aircraft Body
DJI ProSSD
In Remote/Transmitter
microSD/microSDHC/microSDXC - Internal Storage: No
Gimbal
- Number of Axes: 3: Pitch (Tilt), Roll, Yaw (Pan)
- Rotation Range:
Controllable Range Yaw (Pan): -300 to 300°
Roll: -20 to 20°
Pitch (Tilt): 215° (-140 to 75°)
Mechanical Range Yaw (Pan): 660° (-330 to 330°)
Roll: 320° (-90 to 230°)
Pitch (Tilt): 238° (-148 to 90°) - IFollow Speed
Using Using DJI RC Plus
Tilt: 120°/s
Roll: 180°/s
Pan: 270°/s
Using Using DJI Master Wheels
Pan/Tilt/Roll: 432°/s - Stabilization Accuracy:
±0.002° (Motionless) ±0.004° (Motion)
Avoidance/Sensing System
- Sensing System: Omnidirectional
- Sensing System Capabilities:
Forward
Measurement Range: 4.9 to 157.5' / 1.5 to 48 m
Max Speed: 33.6 mph / 15 m/s
Field of View: 90° (Horizontal) / 103° (Vertical)
Backward
Measurement Range: 4.9 to 157.5' / 1.5 to 48 m
Max Speed: 33.6 mph / 15 m/s Field of View: 90° (Horizontal) / 103° (Vertical)
Lateral Measurement Range: 4.9 to 137.8' / 1.5 to 42 m
Max Speed: 33.6 mph / 15 m/s
Field of View: 90° (Horizontal) / 85° (Vertical)
Upward
Measurement Range: 0.7 to 42.7' / 0.2 to 13 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 100° (Front-to-Back) / 90° (Side-to-Side)
Downward Measurement Range: 1.0 to 59.1' / 0.3 to 18 m
Max Speed: 13.4 mph / 6 m/s
Field of View: 130° (Front-to-Back) / 160° (Side-to-Side)
Remote Controller / Transmitter
- Control Method: Included Transmitter
- Operating Frequency:
2.4 GHz (2.400 to 2.4835)
5.8 GHz (5.725 to 5.850) - Maximum Operating Distance: 9.3 Miles / 15 km
- Transmitter Power:
2.4 G: 26 dBm (FCC), 20 dBm (CE, MIC, SRRC)
5.1 G: 26 dBm (FCC), 23 dBm (CE, MIC, SRRC)
5.8 G: 26 dBm (FCC, SRRC), 14 dBm (CE) - Transmitter I/O:
1x HDMI Output (Video)
1x USB-A (Data, Expansion, Service)
1x USB-C (Power) - Clean Video Output: No
- Battery Type. Built-In (3250 mAh)
- Wi-Fi: Wi-Fi 6 (802.11ax)
- Bluetooth: 5.1
- Mobile App Compatible:
Yes: Android & iOS
App Name: DJI Pilot 2 - Built-In Display: 7" (1920 x 1200) Non-Touchscreen LCD, 1200 nits/ cd/m2
- Operating Temperature: -4 to 122°F / -20 to 50°C
Flight Battery
- Battery Chemistry: Lithium Cobalt Oxide (LiCoO2)
- Battery Capacity: 4280 mAh / 98.8 Wh
- Battery Configuration: 6 S / 23.1 V
- Maximum Charging Power: 205.5 W
- Operating Temperature: -4 to 104°F / -20 to 40°C
- Charging Temperature: -4 to 104°F / -20 to 40°C
- Weight: 16.6 oz / 470 g
Charger
- Charger Input Power: 100 to 240 VAC, 50 / 60 Hz at 8 A
- Output Voltage: 26.4 V, 7.8 A
- Power Rating: 476 W
General
- GNSS Support: GPS, BeiDou, Galileo
- Diagonal Size:
27.4" / 695 mm (Landing Gear Raised)
27" / 685 mm (Landing Gear Lowered) - Overall Dimensions: 27.9 x 19.7 x 6.9" / 709.8 x 500.5 x 176.0 mm
- Weight:
8.8 lb / 3995 g (Takeoff)
9.5 lb / 4310 g (Maximum for Takeoff)
Packaging Info
- Package Weight: 45.5 lb
- Box Dimensions (LxWxH): 35 x 25.5 x 11.25"
