The head is made from a brand-new catching aluminium design, and has a maximum payload of 12kg.
Utilising Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It's never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 6.5 kg at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.
Two easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.

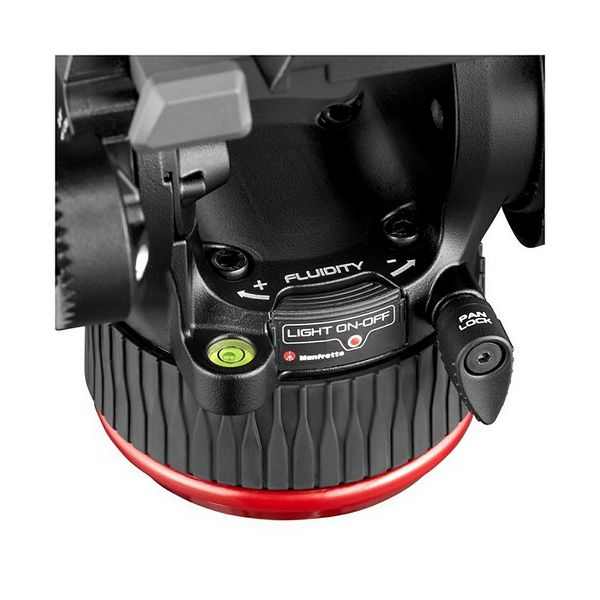

The sliding-plate side-lock attachment enables quicker set up of the camera, keeping video equipment stable and balanced. Head leveling is simple thanks to the clever backlit levelling bubble.

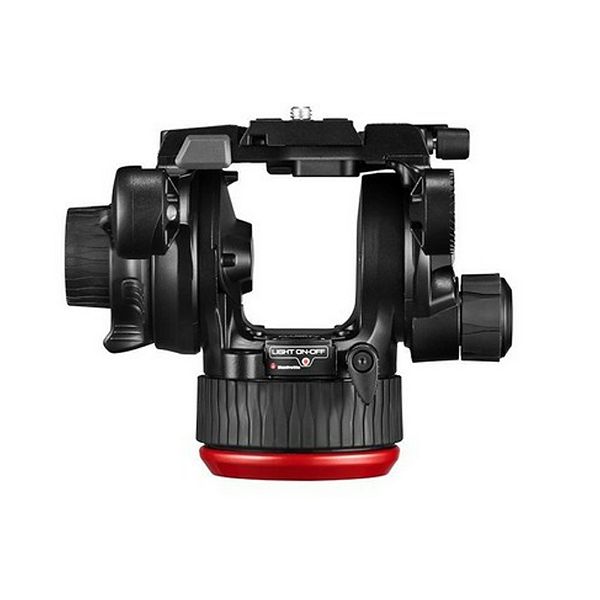

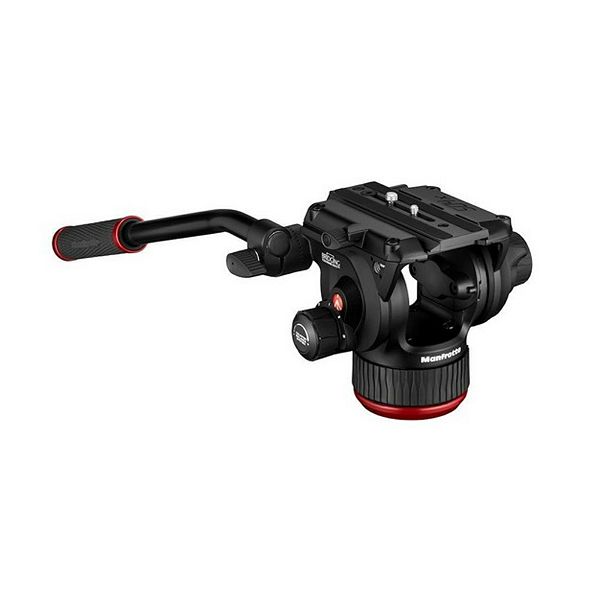

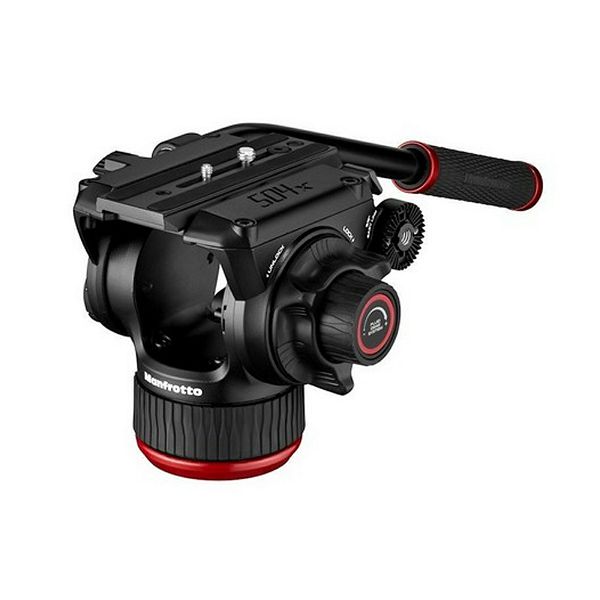

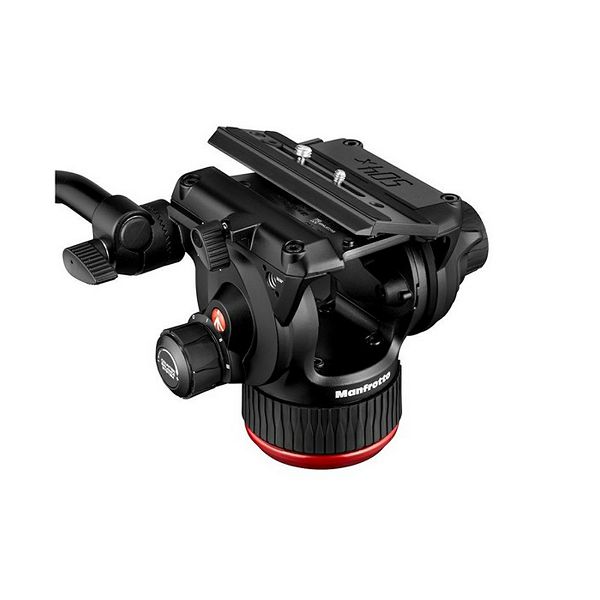

504X Fluid Video Head with flat base
- Variable fluid Drag System on PAN & TILT, performed by new fluid
- 4 steps counterbalance system up to 6,5 kg
- Flat base for shooting on sliders, jibs or other accessories
- Sliding plate side lock attachment
- Easy link connectors with Manfrotto anti rotation technology
BOOST YOUR FILMMAKING WITH THE LATEST 504X FLUID VIDEO HEAD
The evolution of the 504HD matches all videographers’ needs: It is compact and light yet able to carry up to 12 Kg.
The flat base then ensures versatility since it is compatible with all the major accessories.
Flat base
guarantees versatility since it is compatible with many different accessorizes among which sliders and jibs.
New fluid technology
The variable continuous fluid drag system is powered by a new fluid technology, which sets a new level of performance in the Manfrotto range boosting the smoothest and judder-free pan and tilt movements.
NEW IMPROVED PAN AND TILT MOVEMENTS
These pan and tilt drag controls have been considerably improved: the streaked black base allows a judger-free pan’s regulation as well as the external knob reporting Fluid Drag System printing ensures a smooth tilt’s handling.
The stability and firmness in the selected position is guaranteed by two different brakes driven by pan lock and side knob.
New easy link connectors

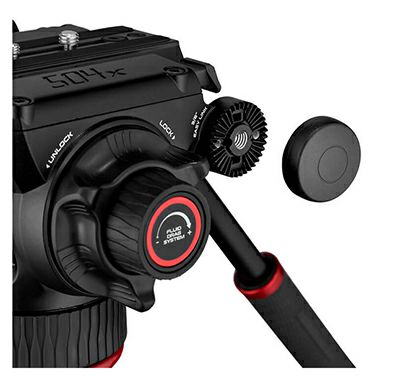

come with Manfrotto anti rotation technology and Arri pin. The pan bar attachments on both left and right sides of the head give maximum flexibility. On the left side, a cap covers the 3/8” easy link connector to avoid cutting during the use.

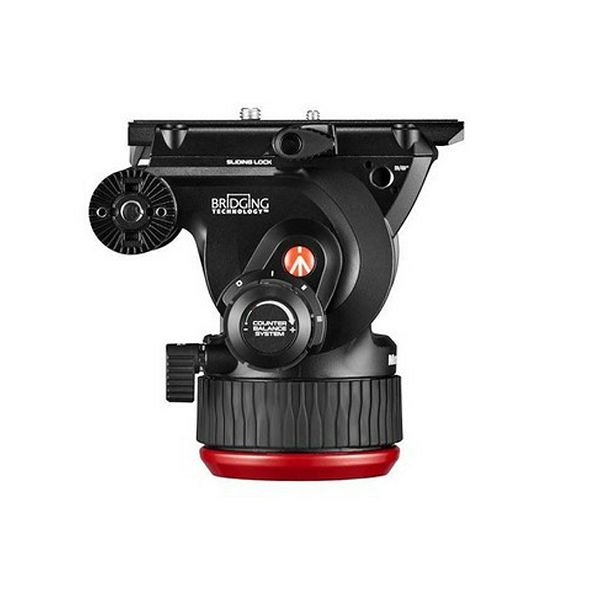

4 steps CBS
The head offers unrivalled stability and allows smooth shooting thanks to a 4-steps counterbalance System up to 6,5 kg/14,3 lb at 55 mm/2,2 in C.O.G.
- STEP 0: off
- STEP 1: 2,2 kg / 4,8 lb
- STEP 2: 4,4 kg / 9,7 lb
- STEP 3: 6,5 kg / 14,3 lb

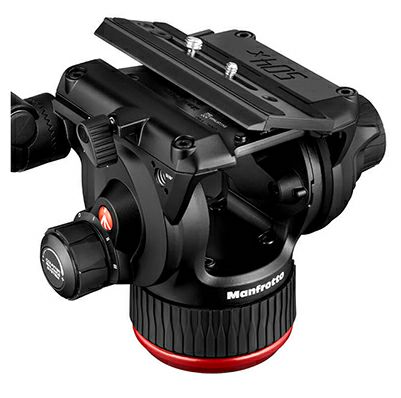

Sliding quick release plate
Sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment, keeping video equipment stability and balanced.
DISCOVER THE ULTIMATE FLUID TECHNOLOGY
Improve your filmmaking with a smoother and judder-free pan and tilt movements powered by our new Manfrotto fluid!

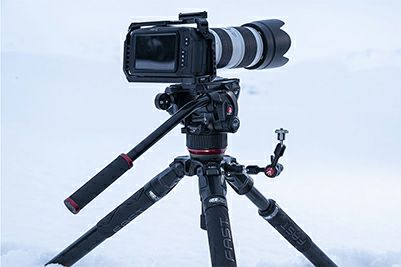

No matter the weather conditions, our new 504X will always performs effortless even at -30° C.
MORE COMPACT AND LIGHT THAN EVER
Weighting 700gr less than the previous model it is the to go-head for any travelling shooting.
Featuring a new aluminum design it will last you a life time!
Key features
- Weight: 2 kg
- Safety Payload UNI/PdR 105:2021: 12 kg
- Counterbalance System: Variable Steps
- Counterbalance Weight: 2.2, 4.4, 6.5 kg
- Base Diameter: 75 mm
- Material: Aluminium
- Bubble Spirit Level (No.): 1
- Center of gravity: 55 mm
- Safety Payload Weight: 12 kg
- Powered by (batteries): Lithium
- Certifications: WEEE; RoHS
- Top Attachment: 1/4” screw, 3/8” screw
- Colour: Black
- Easy Link: Yes
- Front Tilt: -70° / +90°
- Ball Flat: Flat
- Head Type: Video/Fluid Head
- Maximum Working Temperature: 60 °C
- Minimum Working Temperature: -30 °C
- Pan Bar Included: Yes
- Pan Drag: continuously adjustable from 0 to max level
- Panoramic Rotation: 360 °
- Plate Type: 504PLONGR-1
- Quick Release: Yes
- Tilt Drag: continuously adjustable from 0 to max level
- Working Height: 14.9 cm
