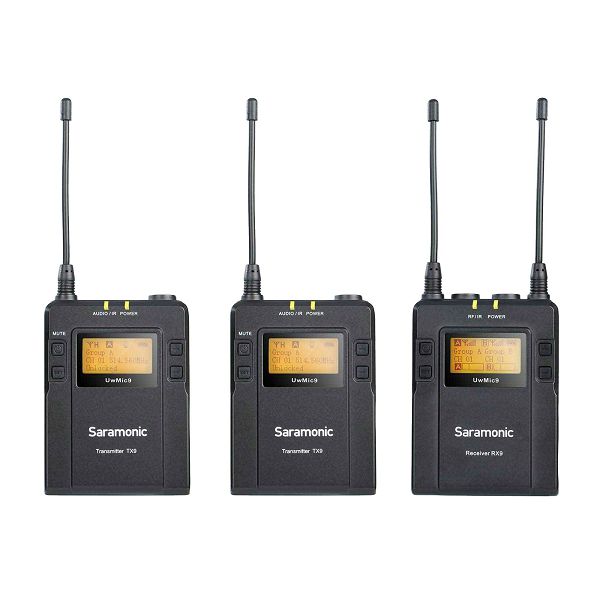

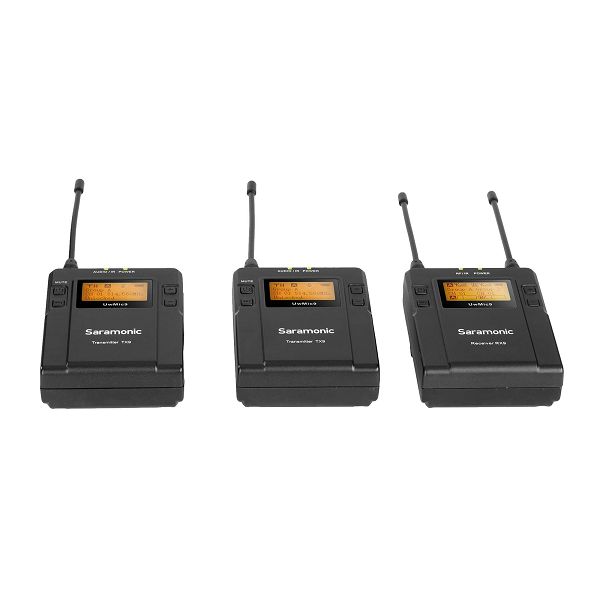

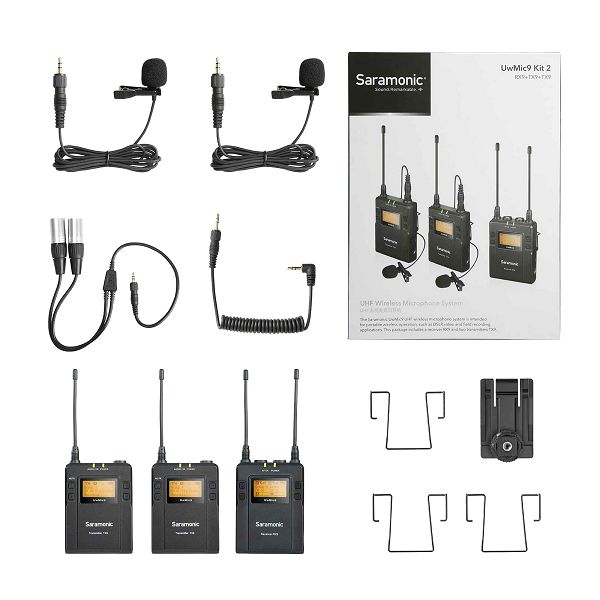

Saramonic UwMic9 (TX9+TX9+RX9) (2x lavalier mic)
- RX9 Bodypack Receiver
- 2 x TX9 Bodypack Transmitters

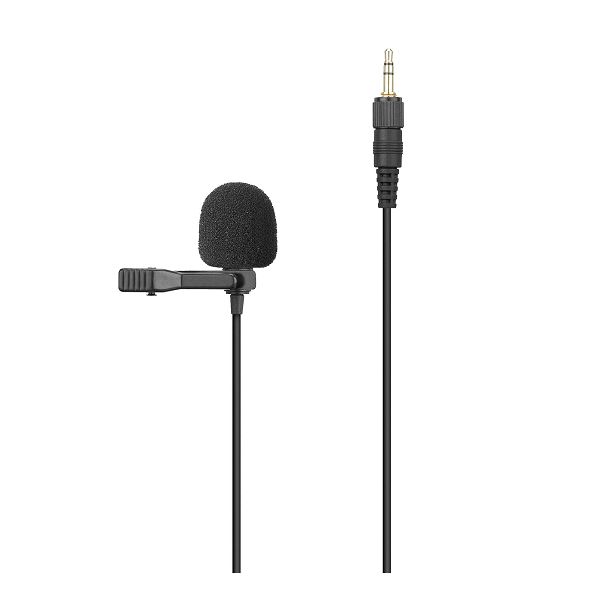

- 2 x Lavalier Microphones
- 96 Selectable Channels
The UWMIC9 RX9 + TX9 + TX9, 96-Channel Digital UHF Wireless Dual Lavalier Mic System from Saramonic is a portable, camera-mountable wireless system for capturing audio with dual subjects. It can be used in several environments for video, field recording, interview, broadcast TV, and ENG applications.
The system's RX9 camera-mountable receiver features a wide-switching RF bandwidth and an easy-to-read LCD display. It is built with infrared synchronization between transmitter and receiver, an auto-scan function, and can search for an available transmission frequency. The headphone jack provides real-time monitoring with headphones, which is useful for cameras that lack a monitor output.

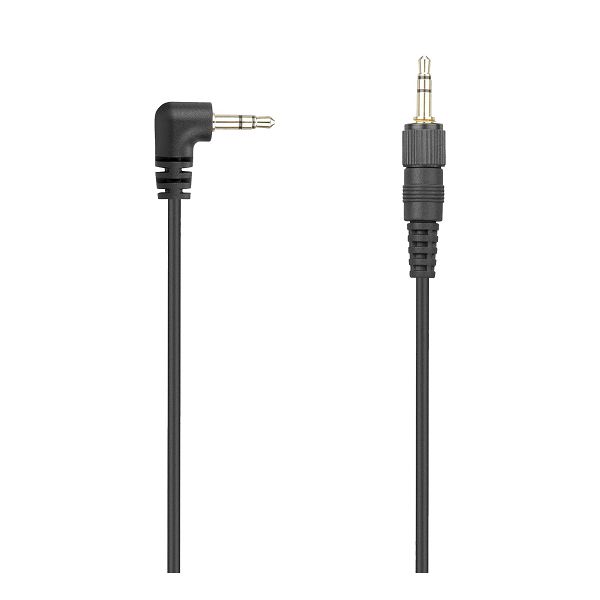

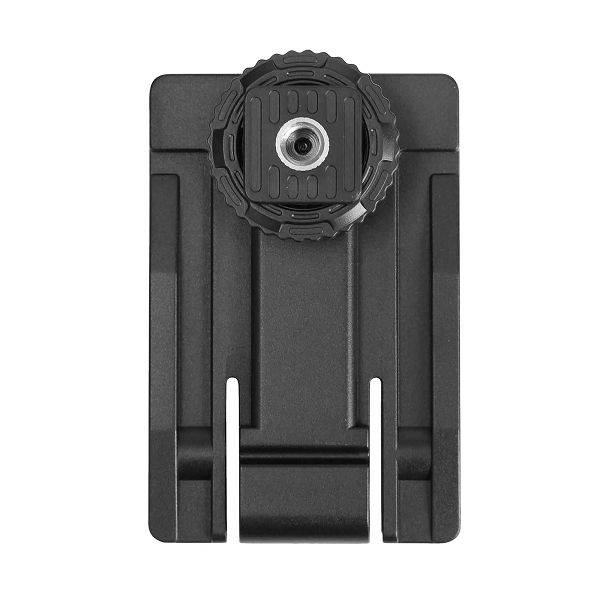

The two compact transmitters employ a crystal-controlled PLL synthesizer and are equipped with a muting function. Their RF power output can be switched between high, middle, and low settings. In addition, each transmitter is built with a 1/8" type mic input. Also, included with this system are two lavalier microphones, a shoe-mount adapter, a single 1/8" to XLR output cable, and a single 1/8 to 1/8" output cable.
Specs
- Channels: Dual Channel Available
- Frequencies: 96, A & B group
- Oscillator Type: PLL synthesizer
- Audio Output Connector: 1/8" (3.5 mm) jack
- Antenna: 1/4 wave wired
- Audio Output Level: -60 dBV
- Headphone Output Level: 30 mW (16 Ohms)
- Receiving Frequency: 514 to 596 MHz
- Receiving Sensitivity: -95 dBm
- Signal to Noise Ratio: 70 dB or more
- Voice Delay: 12 ms
- Reference Deviation: ±5 kHz (-60 dBV, 1 kHz input)
- Frequency Response: 40 Hz to 18 kHz (±3 dB)
- Distortion: 0.5% or less
- Spurious and Harmonic Suppression: -60 dB

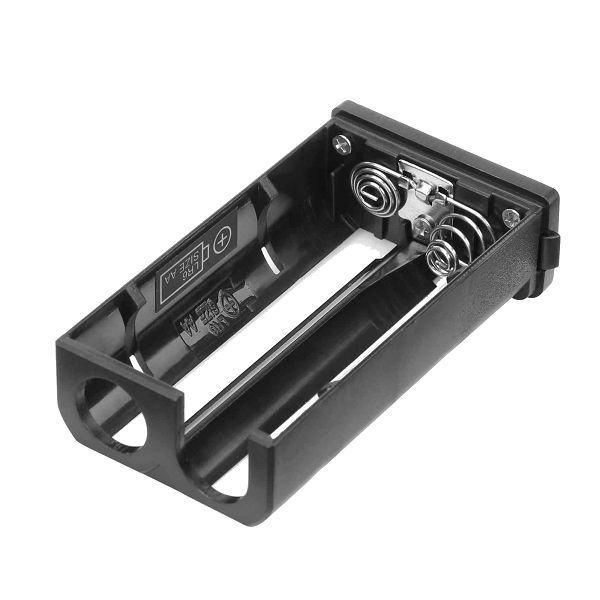

- Batteries: Two AA size batteries
- Dimensions: 6.7 x 2.5 x 1.2" (17 x 6.4 x 3.0 cm)
- Weight: Approx. 7.72 oz (219 g) excluding batteries
- Channels: 96, A & B group
- Oscillator Type: PLL synthesizer
- Audio Carrier Frequencies: 514 to 596 MHz
- Reference Deviation: ±5 kHz (-60 dBV, 1 kHz input)
- Signal to Noise Ratio: 70 dB or more
- Spurious and Harmonic Suppression: -60 dB
- Voice Delay: 12 ms
- Antenna: 1/4 wave wired
- Audio Input Connectors: 1/8" (3.5 mm) jack
- Audio Input: -60 dBV (MIC input, 0 dB attenuation)
- RF Output Level: 30 mW / 20 mW / 10 mW selectable
- Battery: 2 x AA size batteries
- Operating Temperature: 32 to 122°F (0 to 50°C)
- Storage Temperature: -4 to 131°F (-20 to +55°C)
- Distortion: 0.5% or less
- Dimensions: 6.7 x 2.5 x 1.2" (17 x 6.3 x 3.0 cm)
- Weight: Approximately 7.46 oz (211.4 g) excluding batteries
