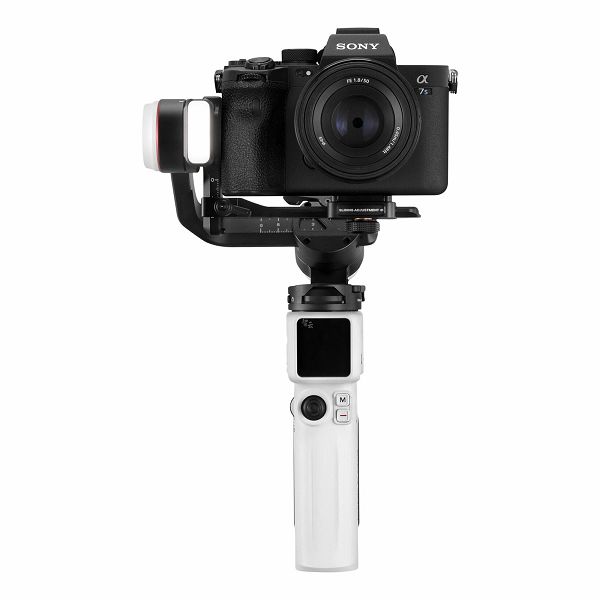

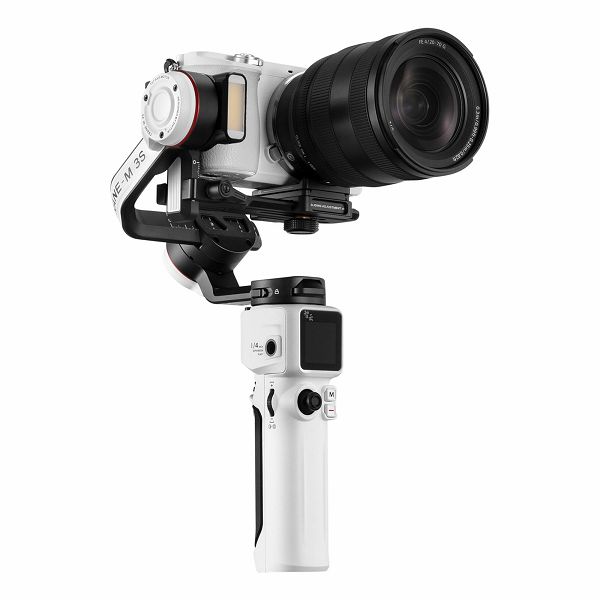

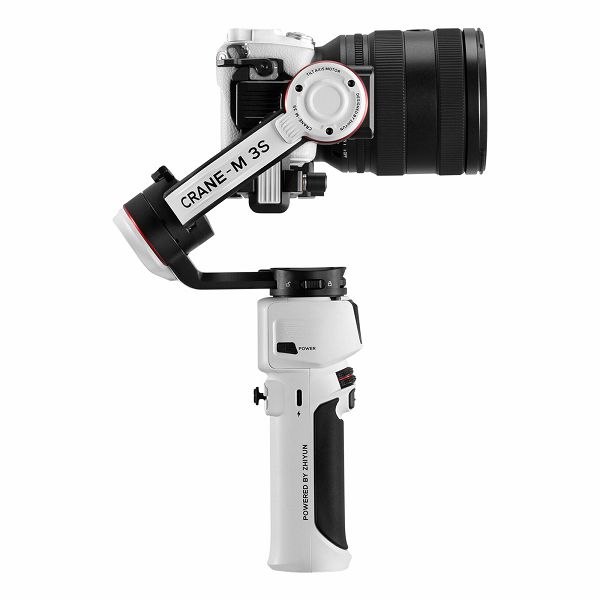

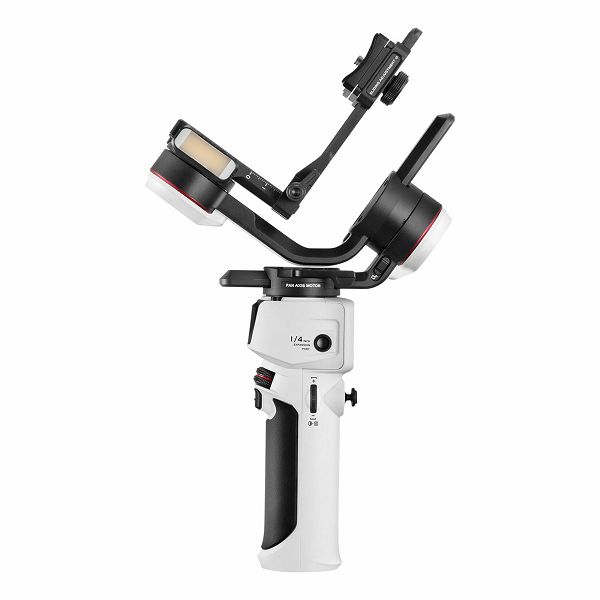

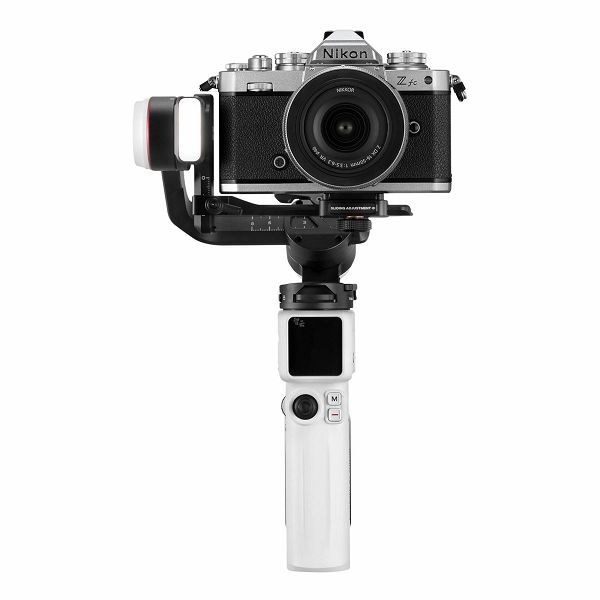

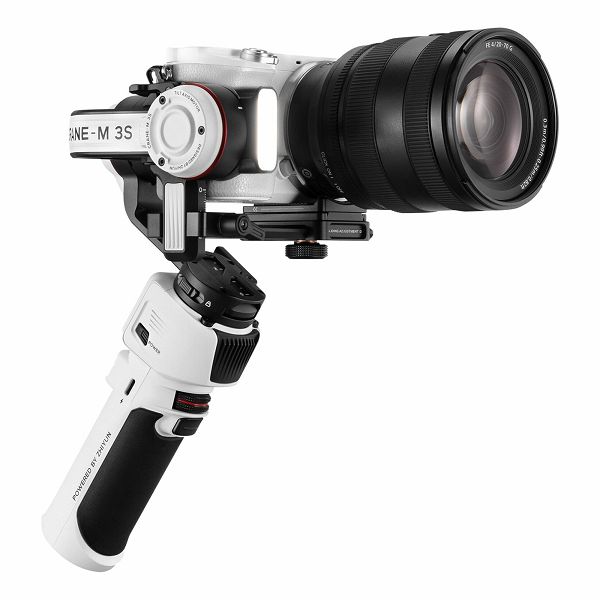

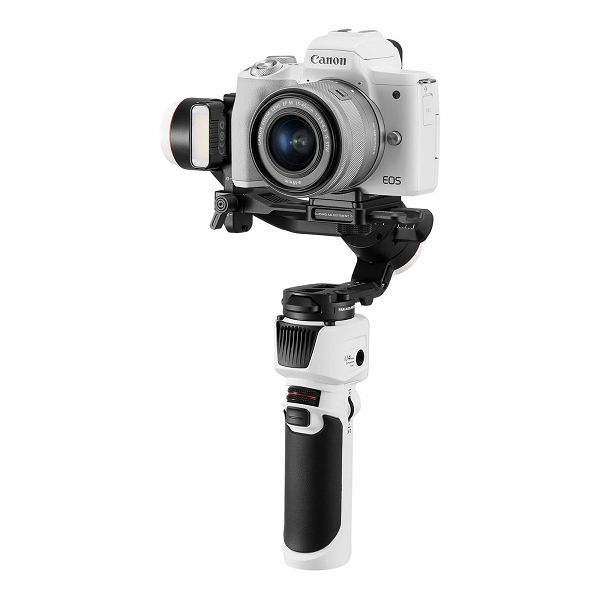

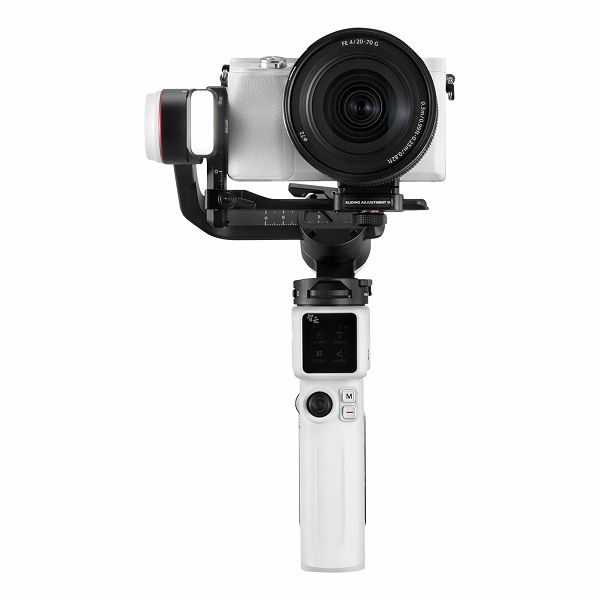

Zhiyun CRANE-M3 S 3-Axis Handheld Gimbal Stabilizer Combo Kit
Maintaining the lightweight, portable form factor of its predecessor, the CRANE-M3 S 3-Axis Handheld Gimbal Stabilizer Combo Kit from Zhiyun has been upgraded to accommodate cameras with full-frame lenses, as well as action cameras and smartphones. The CRANE-M3 S offers 360° pan, 305 tilt, and 314° roll rotation with optimized axis locking. Take the gimbal on your next adventure and easily control your settings with the 1.22" color touchscreen, onboard controls, and Bluetooth-powered wireless shutter. A quick release system with two forms of adjustment allows you to easily access your camera's battery without needing to rebalance your rig. The CRANE-M3 S also features a built-in fill light with a 1000 lux output and adjustable color temperature.
Compact Form Factor, Improved Load Capacity

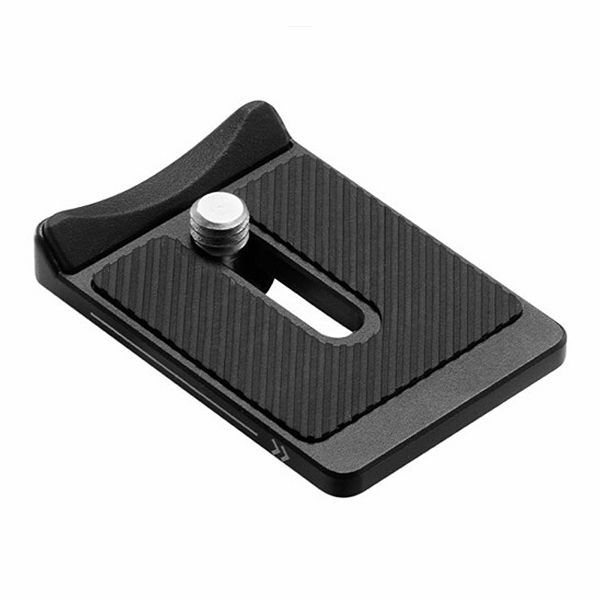

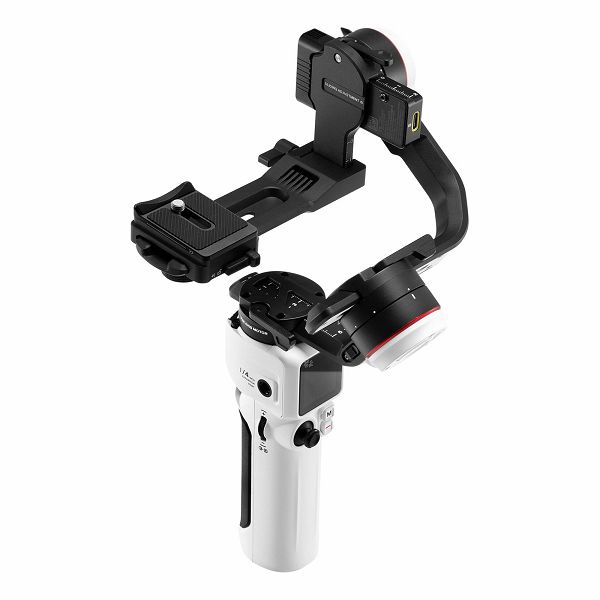

Quick Release System
An improved quick release system offers two modes of adjustment. Easily slide your camera on and off the gimbal to mount new accessories or replace its battery without needing to rebalance the rig.
Bluetooth 5.0 Shutter Control
While the included camera control cables offer the option for wired shutter control, avoid complicated cable runs by using the embedded Bluetooth 5.0 shutter control. Wirelessly control your camera's shutter and toggle recording via the onboard controls and touchscreen.

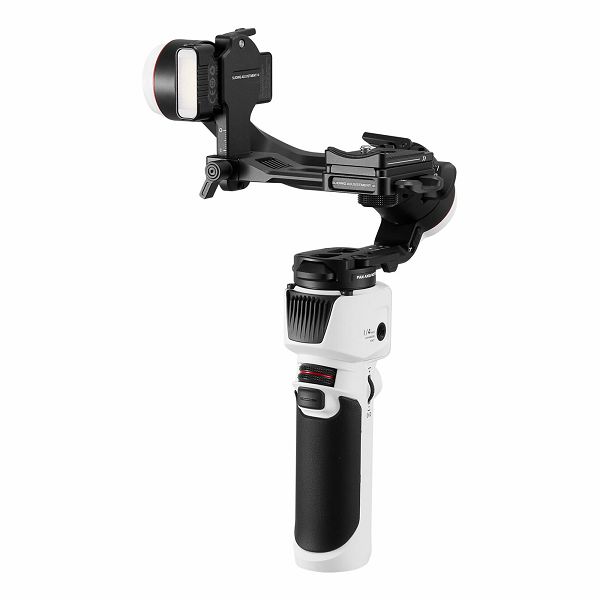

Brighter Fill Light
Zhiyun's Lumen Amplifier technology has created a powerful light source built right into your gimbal's construction. The fill light has a brightness of 1000 lux and adjustable dual color temperature from 2700 to 5500K.
Creative Operation Modes
Selectable from your 1.22" touchscreen, toggle between four creative filming modes for more dynamic vlog content. Choose between panorama, time-lapse, mono-lapse, and vortex.
Shoot Longer, Take It on the Go
A built-in 1150mAh battery with a runtime of 7.5 hours allows you to keep shooting a full day of activity. The USB-C charging port supports PD fast charging to get you back up and running in just 2 hours. You can also charge the gimbal while it's in use. An included backpack with padded interior dividers makes taking your gimbal and accessories to your next travel destination a breeze.
In the Box
- Zhiyun CRANE-M3 S 3-Axis Handheld Gimbal Stabilizer Combo Kit

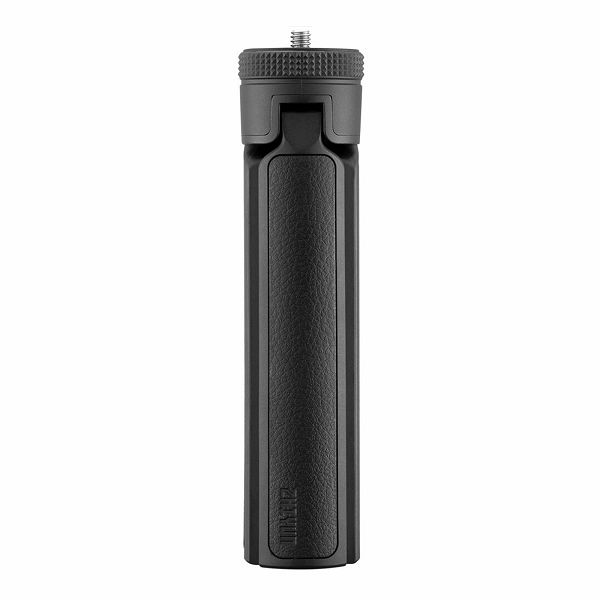

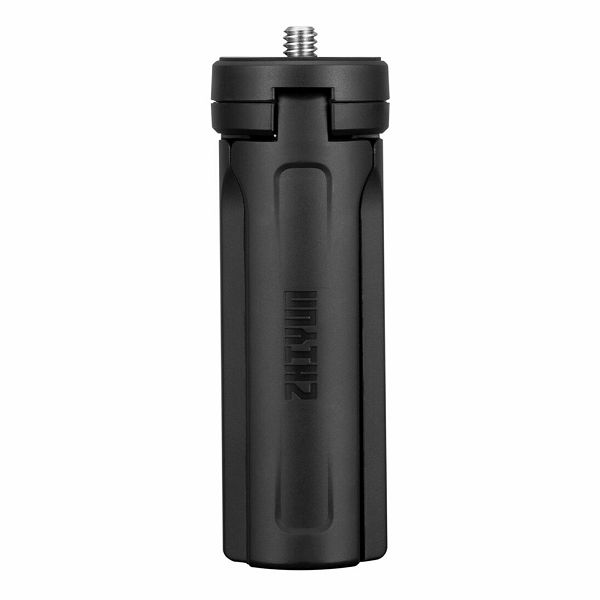

- Mini Tripod
- Smartphone Clamp

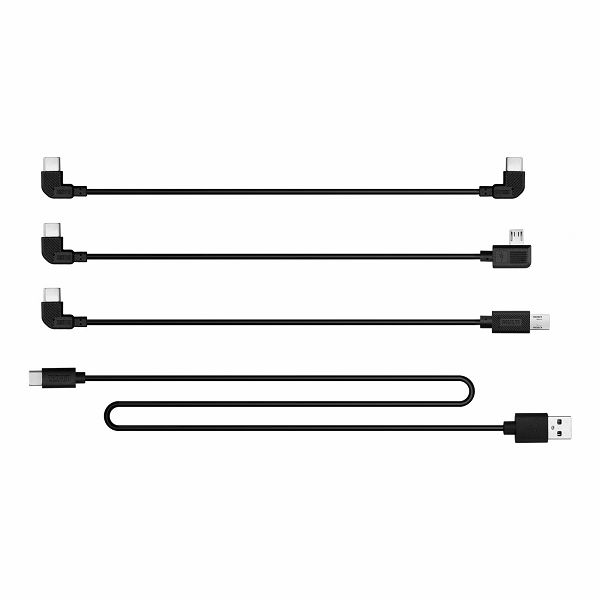

- USB-C to Sony Multi Control Cable
- USB-C to 3.5mm Canon Control Cable
- Panasonic Control Cable
- USB-C to USB-C Charging Cable
- Backpack
- Limited 1-Year Manufacturer Warranty
Key Features
- Ultra-Portable Design
- Optimized Arm for Full-Frame Lenses
- Improved Quick Release Camera System
- Backpack and Smartphone Clamp
- 360° Pan, 305° Tilt, 314° Roll Rotation
- Bluetooth 5.0 Shutter Control
- Built-In 1000 Lux Fill Light
- Creative Operation Modes, 7.5-Hr Runtime
- 1.22" Color Touchscreen, 2.4 GHz Wi-Fi
- Built-In 1150mAh Battery, PD Fast Charge
Key Specs
- Gimbal Design: Single Handgrip (Slanted)
- Number of Axes: 3: Pitch (Tilt), Roll, Yaw (Pan)
- Wireless Frequency: 2.4 GHz
- Wireless Protocol: Bluetooth 5.0, Wi-Fi (Unspecified Type)
- Mobile App Compatible: Yes: Android & iOS
- Mounting: 1 x 1/4"-20 Female
- Weight: 1.6 lb / 705 g (with Camera Plate)
Gimbal
- Number of Axes: 3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range
Mechanical Range
Yaw (Pan): 360°
Pitch (Tilt): 305°
Roll: 314°
Controllable Range
Yaw (Pan): 360° Unlimited
Pitch (Tilt): 205° (-45 to 160°)
Roll: 60° (-30 to 30°)
Compatibility
- Camera Control: On Compatible Models (See Full Compatibility List)
- Camera Mounting Screw: 1x 1/4"-20 Male
Connectivity
- Inputs/Outputs
1x USB-C (Power) Input
1x USB-C (Power / Control) Output - Wireless Frequency: 2.4 GHz
- Wireless Protocol: Bluetooth 5.0, Wi-Fi (Unspecified Type)
- Mobile App Compatible: Yes: Android & iOS
Battery
- Battery Type: 1x Built-In
- Battery Capacity: 1150 mAh
- Battery Runtime: 7.5 Hours
- Battery Charging Time: 2 Hours
Power
- Operating Voltage: 9.6 to 12.6 VDC
- Operating Current: 135 to 4000 mA
General
- Display Type: Fixed Touchscreen OLED
- Operating Conditions: 22 to 82°F / -10 to 50°C
- Mounting: 1 x 1/4"-20 Female
- Dimensions:
7.3 x 6.4 x 2.9" / 184.2 x 163.5 x 74.5 mm (Folded)
10.5 x 6 x 5.6" / 265.6 x 152.2 x 141.2 mm - Weight : 1.6 lb / 705 g (with Camera Plate)
